PS-31506 Square Post Base Connector Split Column Shoe Steel Structure Base - 3*60*60*150
Square Post Base Connector Split Column Shoe Steel Structure Base - 3*60*60*150
Wood Structure ConnectorsLight Steel ConnectorsHeavy Timber Structural ConnectorsBeam-Column Structural ConnectorPost Base
- SKU: PS-31506
- Variant: 3*60*60*150
- Size: 3 × 60 × 60 × 150 mm0.12 × 2.36 × 2.36 × 5.91 in
- Inquiry
Product Description
This split column base connector is designed for square wood or steel posts, suitable for post sizes from 90x90mm to over 160mm. It features a diagonal installation method for stable load-bearing, making it an ideal post shoe accessory for wood structures, light steel structures, and heavy beam-to-column connections. It is recommended to use 2 or 4 diagonal fasteners depending on the post size to ensure structural safety.

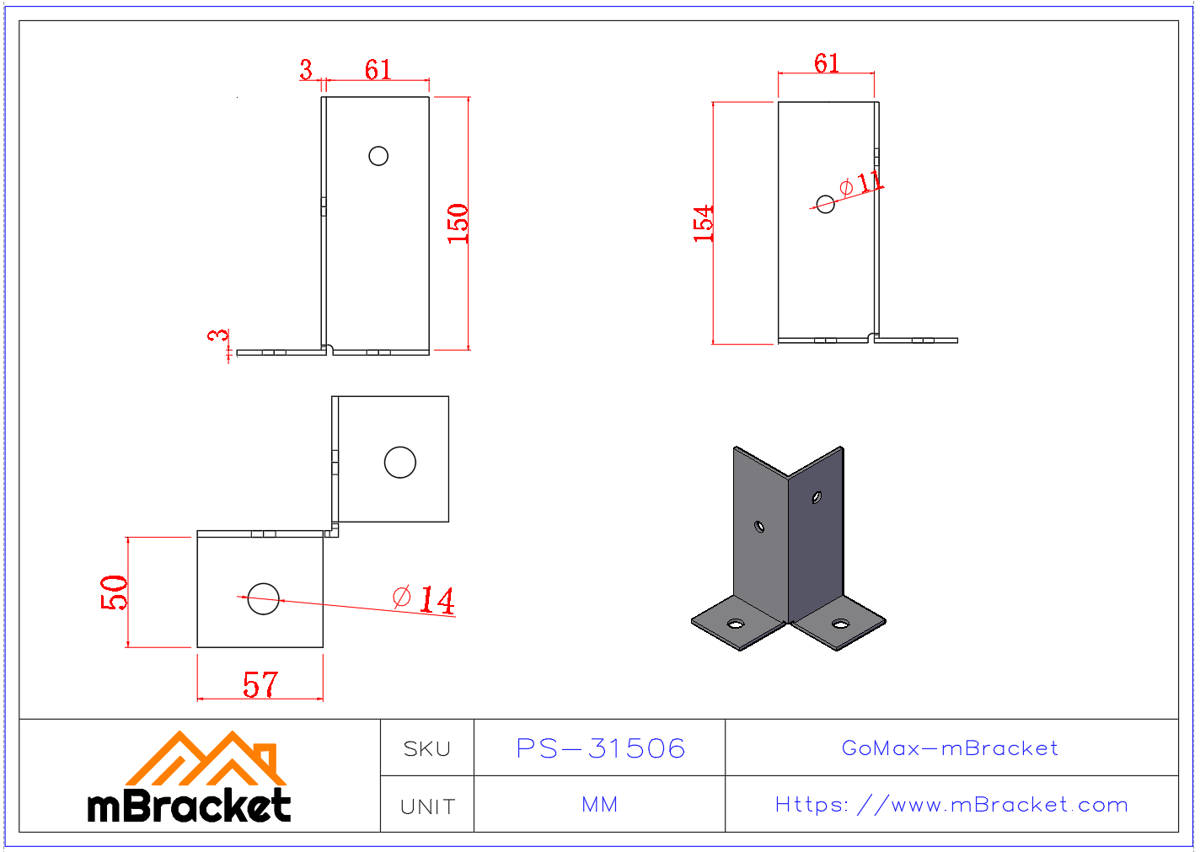

Product Dimensions

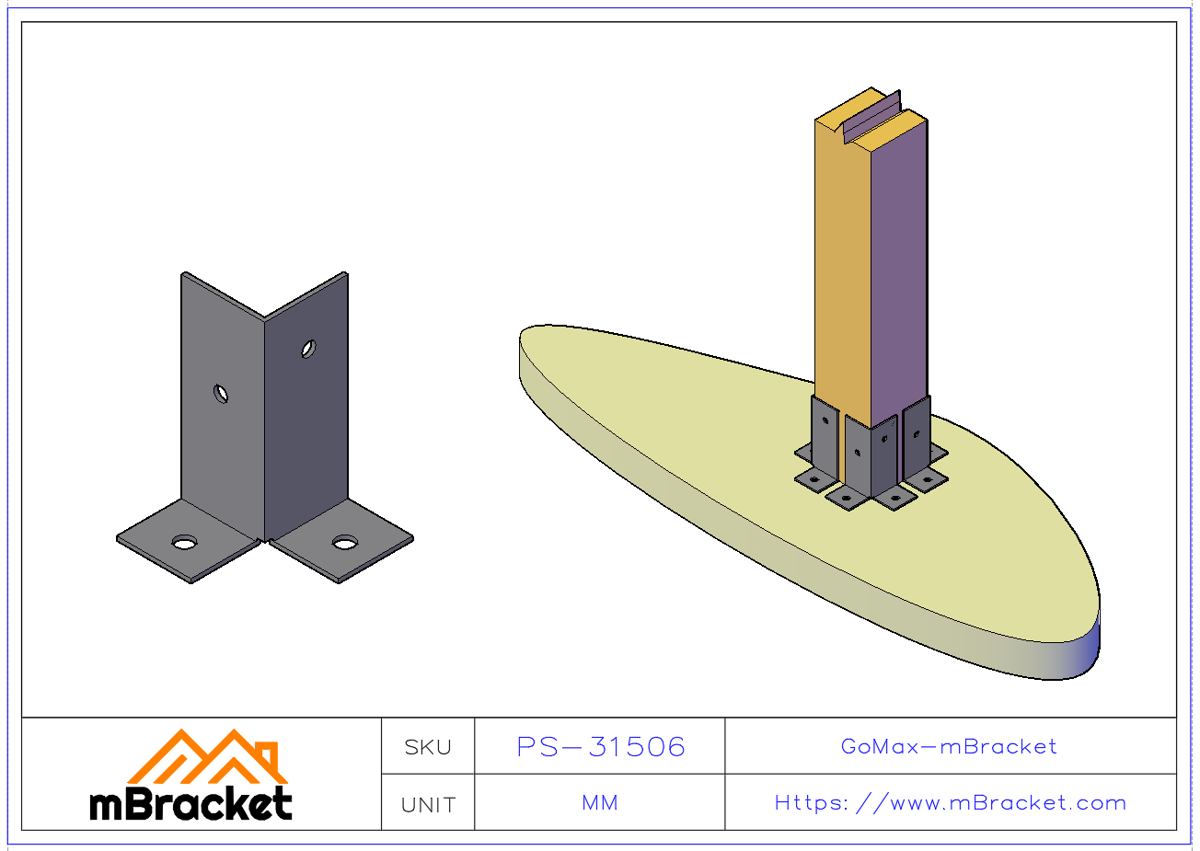

Application Example
Keywords
post base connectorcolumn connectorsquare post shoesplit column basesteel structure basewood structure post baseheavy-duty post connector90x90 post base100x100 post base120x120 post base140x140 post base150x150 post basepost over 160mmdiagonal fastening post base
