PS-41506 Split Post Base Connector Square Column Post Base Wood Structure Column Base - 4*60*60*150
Split Post Base Connector Square Column Post Base Wood Structure Column Base - 4*60*60*150
Wood Structure ConnectorsHeavy Timber Structural ConnectorsBeam-Column Structural ConnectorPost Base
- SKU: PS-41506
- Variant: 4*60*60*150
- Size: 4 × 60 × 60 × 150 mm0.16 × 2.36 × 2.36 × 5.91 in
- Inquiry
Product Description
This split post base connector is designed for wood structure columns, made of high-quality steel, providing stable column support and uplift resistance. Suitable for square columns from 140x140mm to 180x180mm. It is recommended to use 4 connectors per column fixed diagonally to ensure structural safety and reliability. For columns smaller than 140mm, model PS-31506 is recommended.

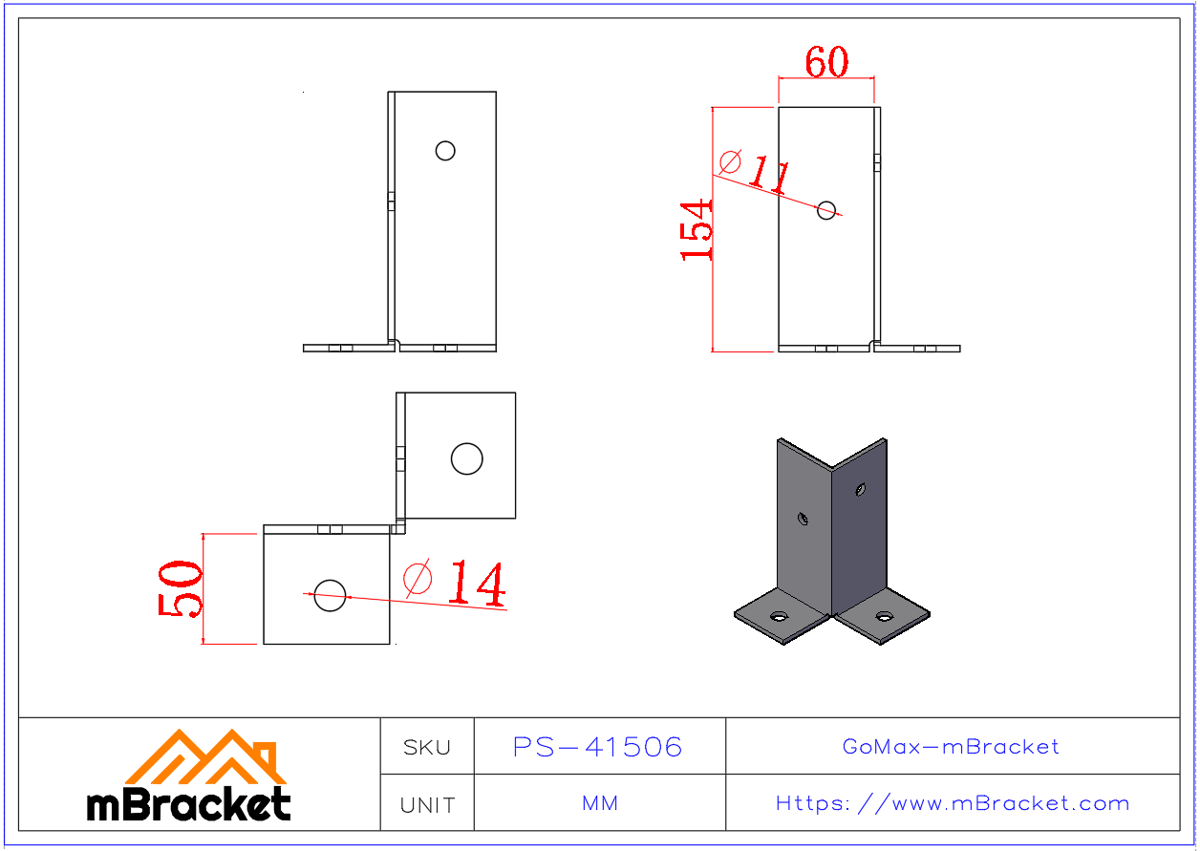

Product Dimensions

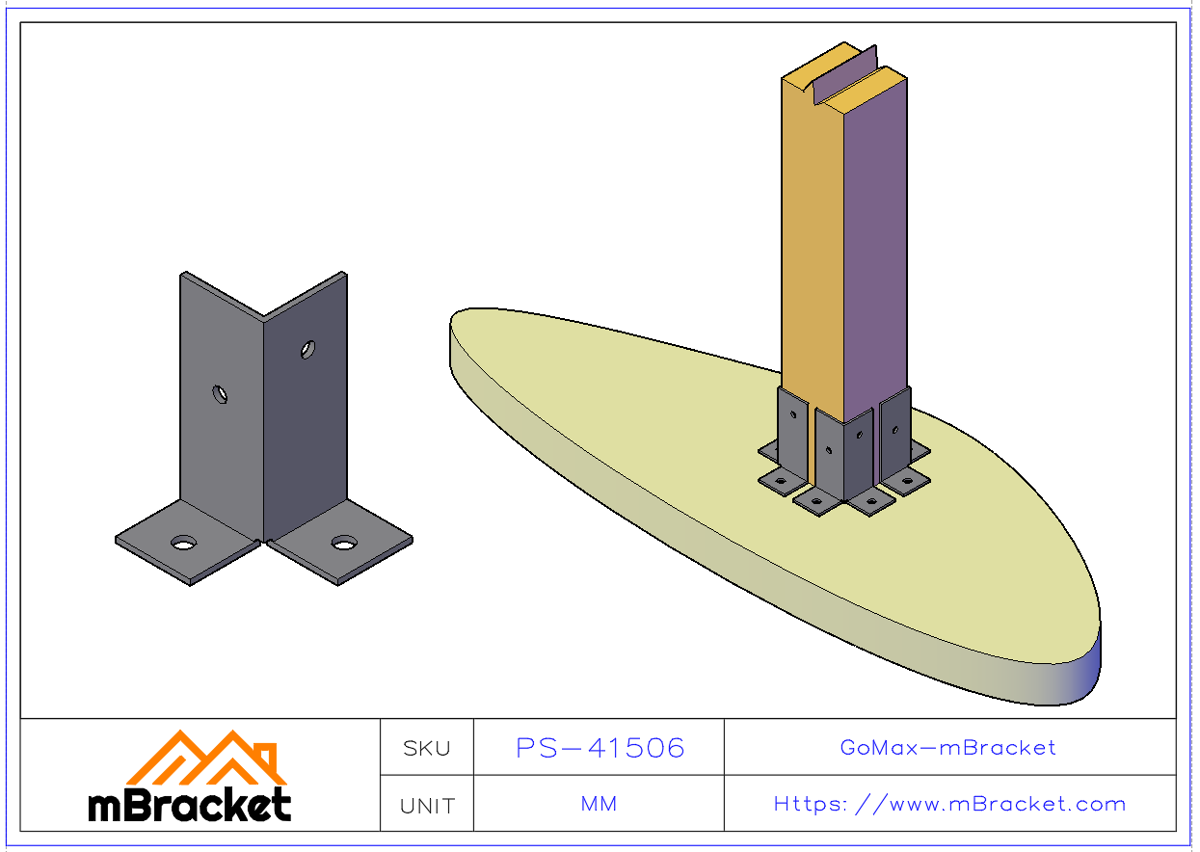

Application Example
