PS-41212-3 Square Post Base Connector, Column Base, Flared Post Base - 4*120*120*120
Square Post Base Connector, Column Base, Flared Post Base - 4*120*120*120
Wood Structure ConnectorsLight Steel ConnectorsHeavy Timber Structural ConnectorsBeam-Column Structural ConnectorPost Base
- SKU: PS-41212-3
- Variant: 4*120*120*120
- Size: 4 × 120 × 120 × 120 mm0.16 × 4.72 × 4.72 × 4.72 in
- Inquiry
Product Description

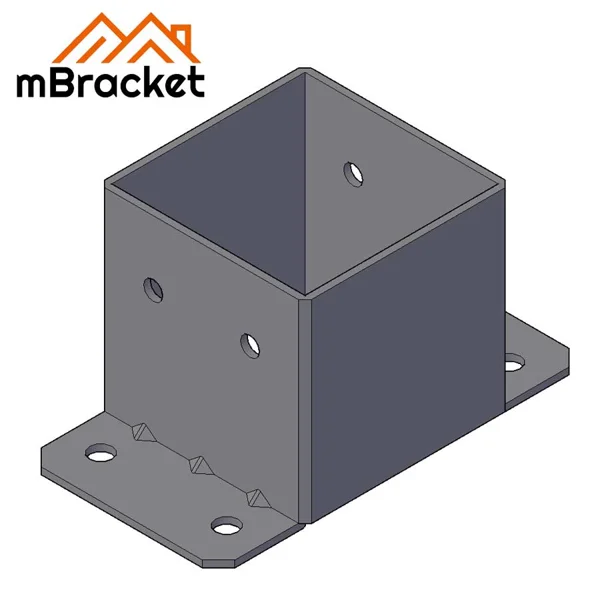

This PS-41212-3 square post base connector (column base) is made of high-quality steel, designed for a secure connection between wood or light steel columns and foundations. The flared design facilitates installation, effectively transfers vertical loads, and resists uplift forces. Suitable for outdoor decks, pergolas, cabins, and other building projects. Durable and robust, it is a key hardware component for structural safety.

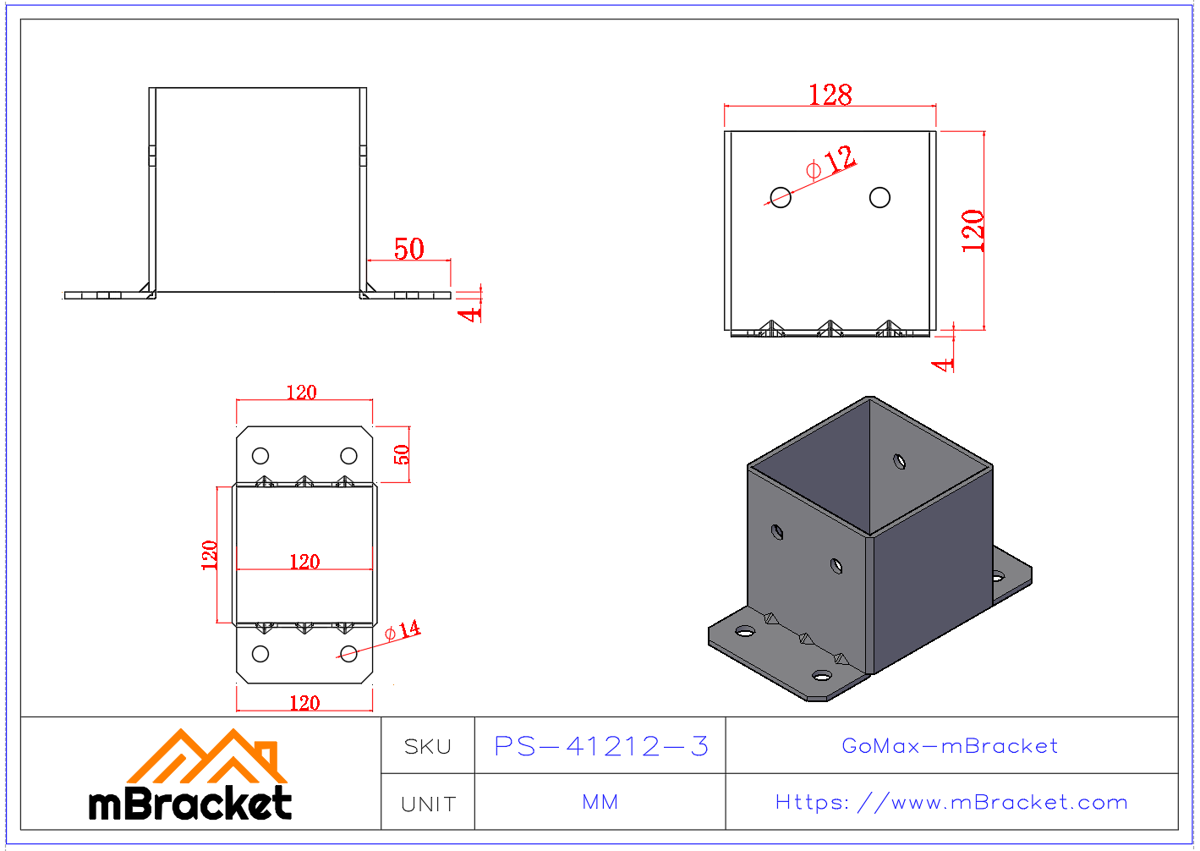

Product Dimensions

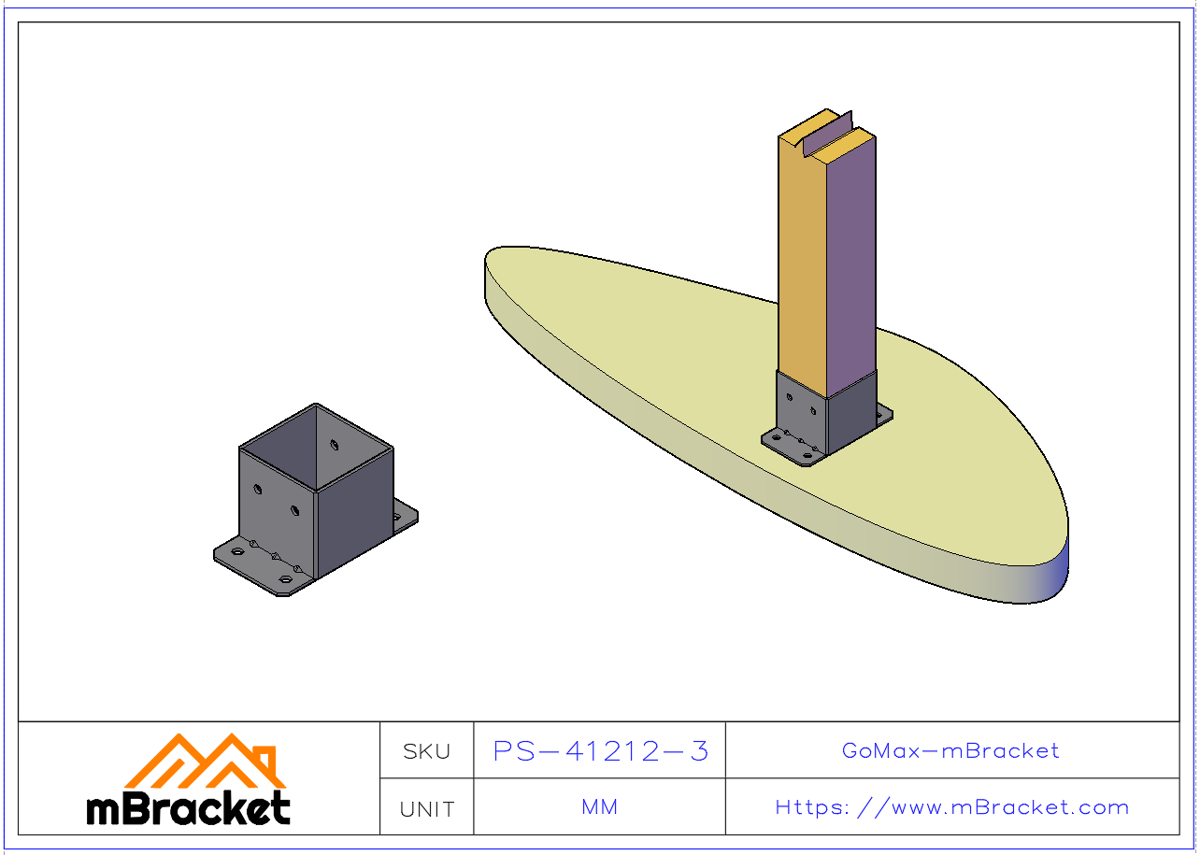

Application Example
