PS-41919-3 Square Post Base Connector 190x190 Column Base Concrete Foundation Fastener - 4*190*190*190
Square Post Base Connector 190x190 Column Base Concrete Foundation Fastener - 4*190*190*190
- SKU: PS-41919-3
- Variant: 4*190*190*190
- Size: 4 × 190 × 190 × 190 mm0.16 × 7.48 × 7.48 × 7.48 in
- Inquiry
Product Description

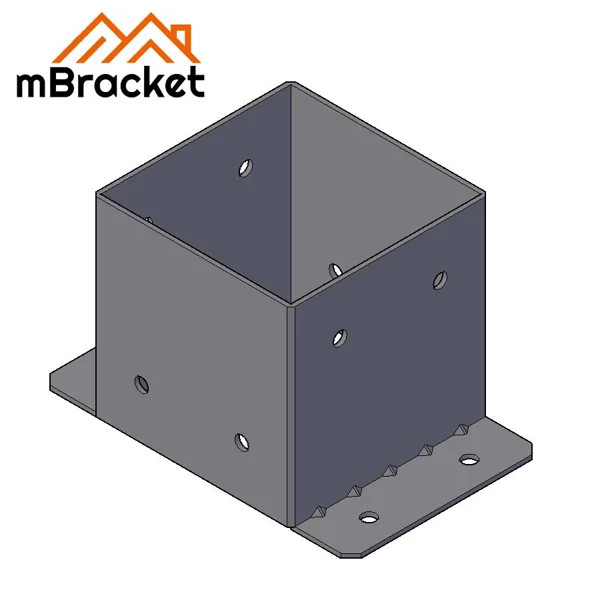

This square post base connector is designed for securely connecting 190x190mm wood or steel posts to concrete surfaces. Featuring a sleeve structure for easy installation, it effectively transfers vertical loads and resists uplift forces. As an essential structural connector for light-frame, heavy timber, and post-and-beam construction, it is ideal for anchoring decks, pergolas, carports, and other outdoor structures to ensure stability and safety.

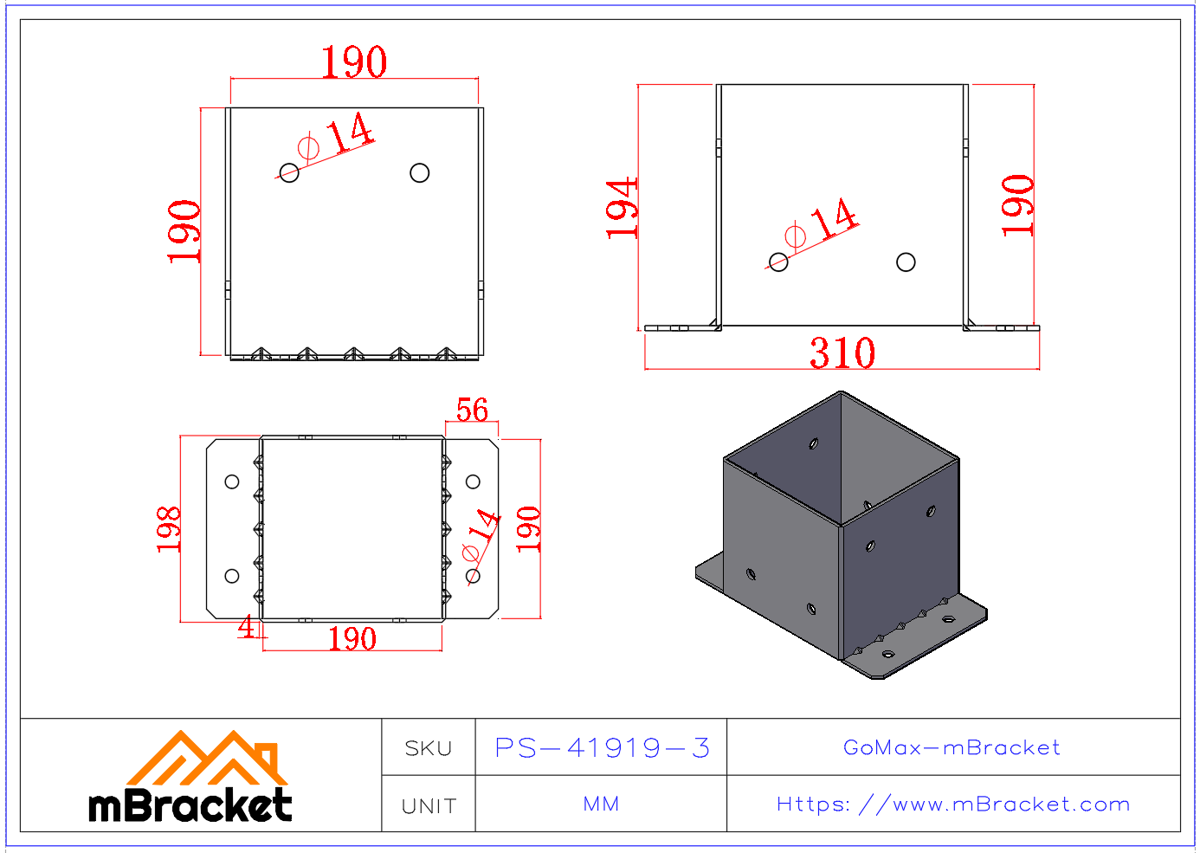

Product Dimensions

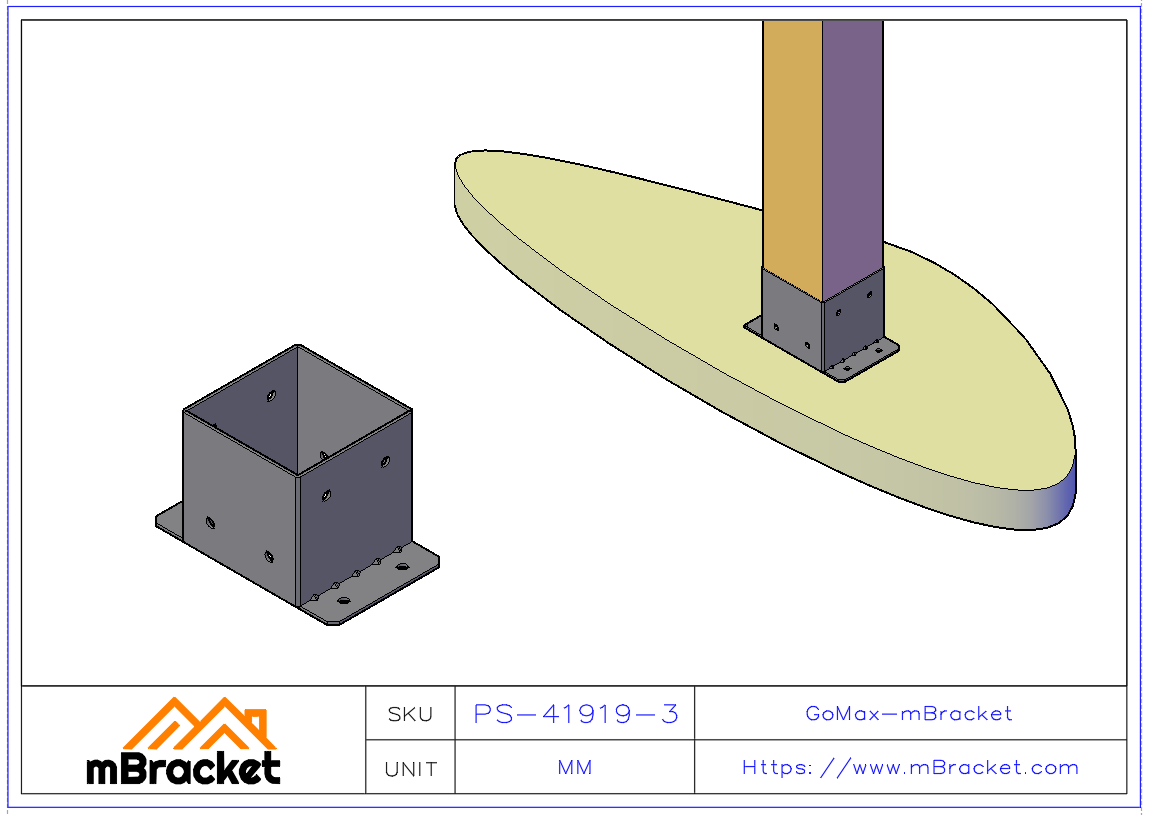

Application Example
Keywords
post base connectorcolumn connectorsquare post basecolumn base connector190x190 post anchorconcrete embedmentwood connectorpost and beam connectorheavy timber connectorfoundation fastenersleeve connectorpost basestructural hardware
