LJ-3413 Beam Tie Rod Floor Uplift Connector Seismic Reinforcement Hardware - 3*40*130*300
Beam Tie Rod Floor Uplift Connector Seismic Reinforcement Hardware - 3*40*130*300
- SKU: LJ-3413
- Variant: 3*40*130*300
- Size: 3 × 40 × 130 × 300 mm0.12 × 1.57 × 5.12 × 11.81 in
- Inquiry
Product Description
This beam tie rod is designed for seismic strengthening connections in beam-column structures, and can also be used for floor uplift connections in light steel or light wood structures. The screw diameter can be customized to 10, 12, or 14 mm, and the length can be specified to meet different engineering requirements. Made of high-quality steel, it provides reliable seismic and uplift resistance, making it an ideal choice for structural reinforcement.

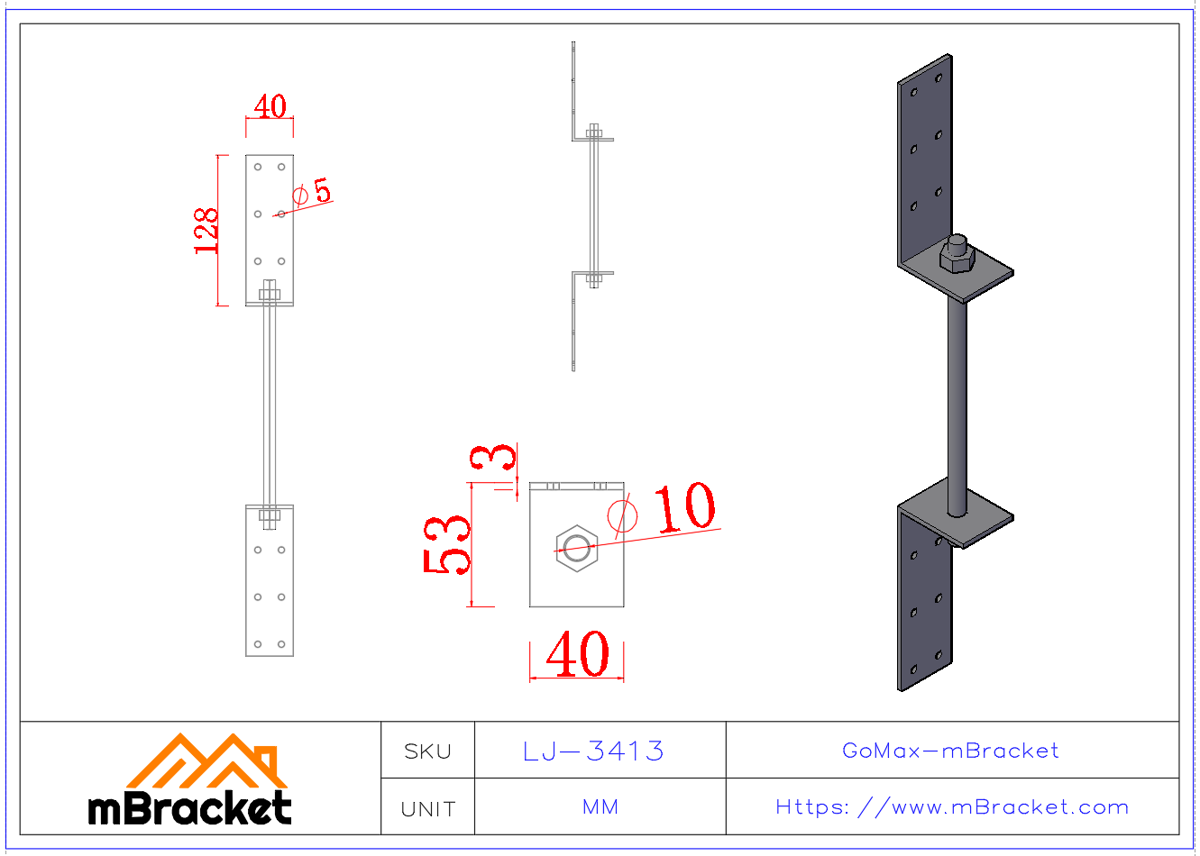

Product Dimensions

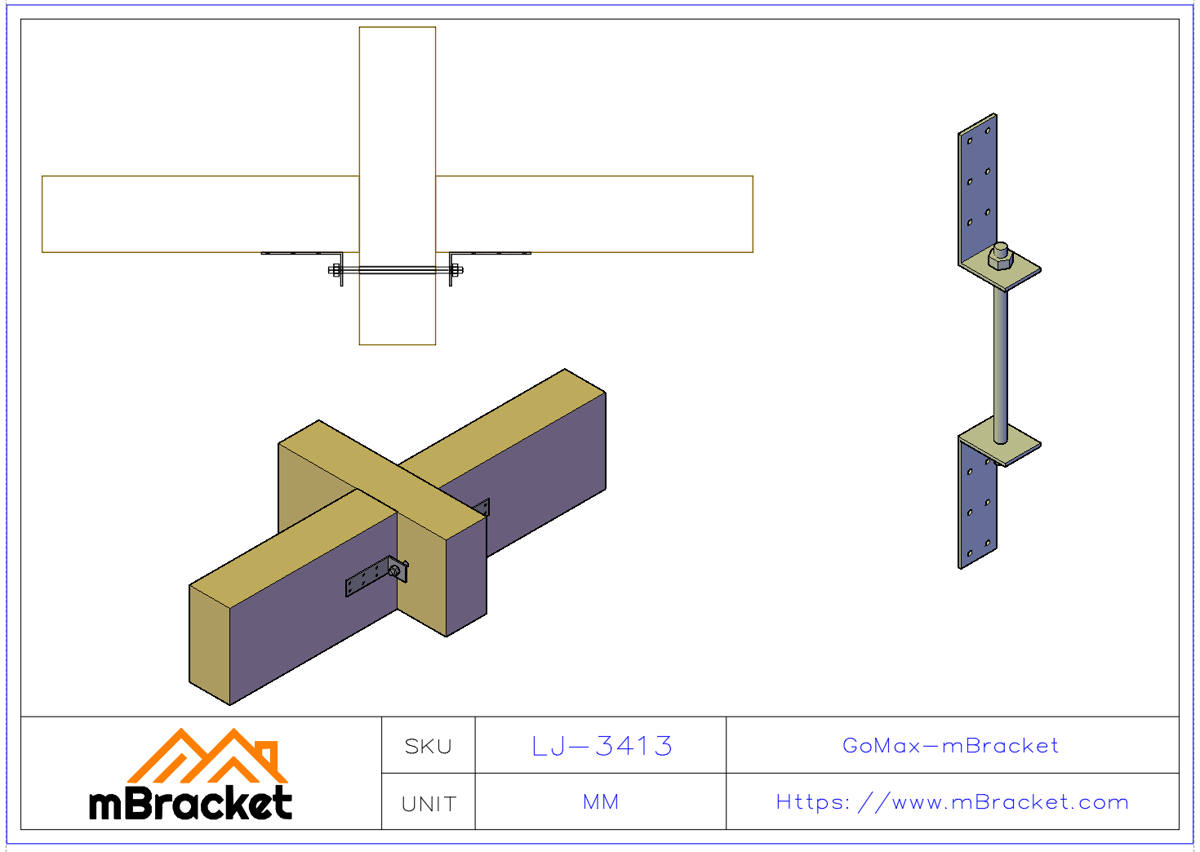

Application Example
