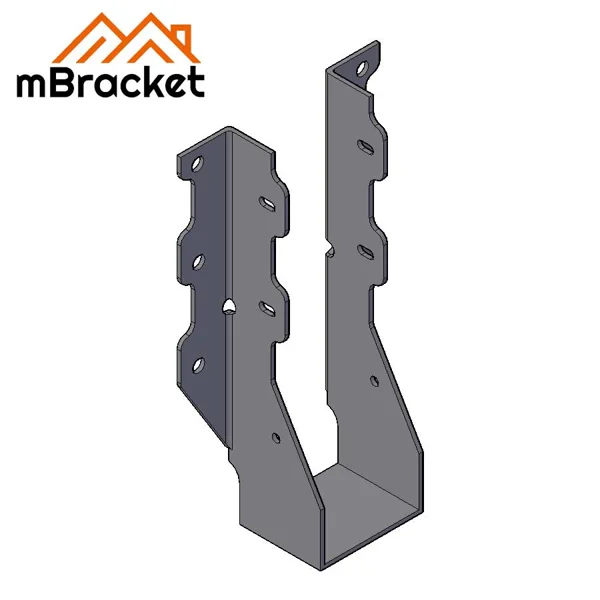

JUS-53A U-Shaped Beam Hanger Horizontal Wood Structure Connector - 253188

U-Shaped Beam Hanger Horizontal Wood Structure Connector - 253188

Wood Structure Connectors Joist Hanger U-shaped connector

SKU: JUS-53A
Variant: 2*53*188
Size: 2 × 53 × 188 mm0.08 × 2.09 × 7.4 in
Inquiry

Product Description

This U-shaped beam hanger is specifically designed for wood-frame villas, providing reliable connections between joists and main beams. Constructed from durable steel, it is suitable for wood beams or I-joists (TJI) with a thickness of 53mm and a height of 188mm or more, ensuring stable horizontal connections. Easy to install, it effectively enhances the overall structural strength and stability of wood frames, making it an ideal choice for log cabin construction and renovation.

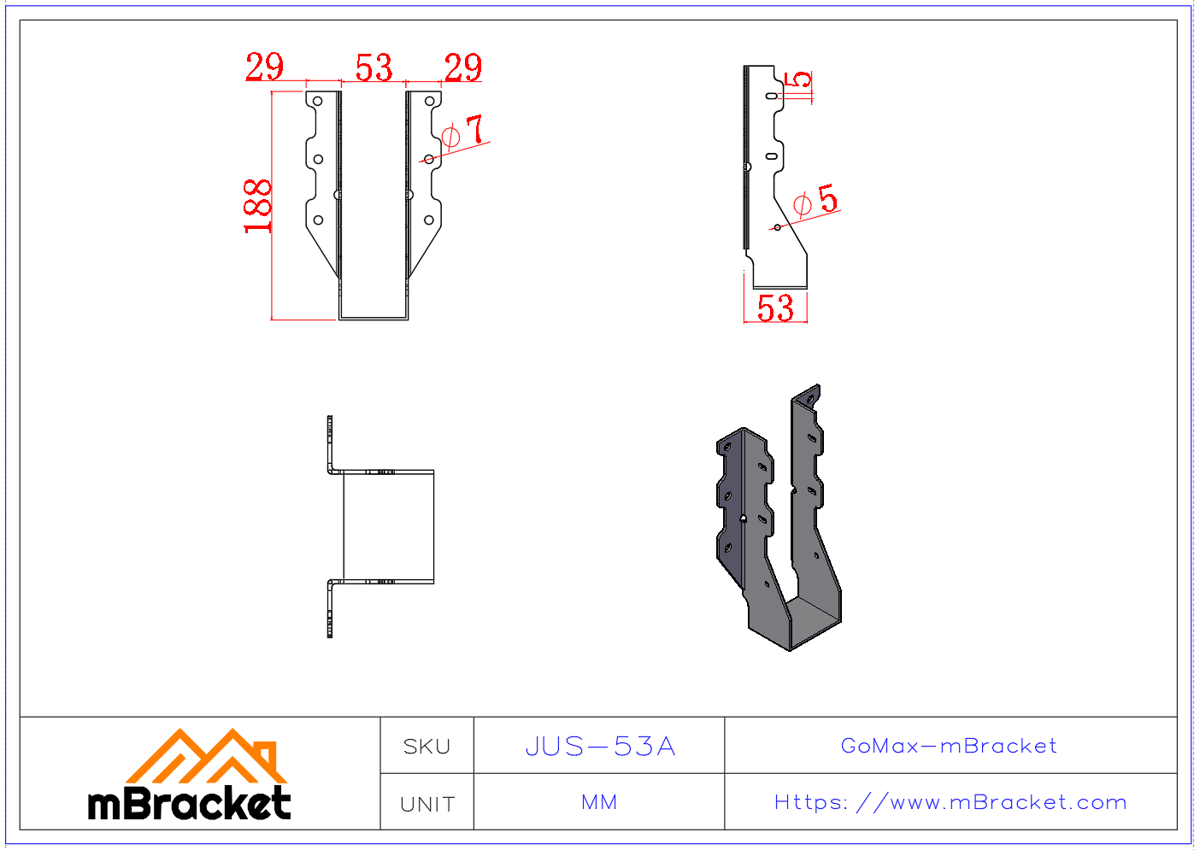

Product Dimensions

Application Example
