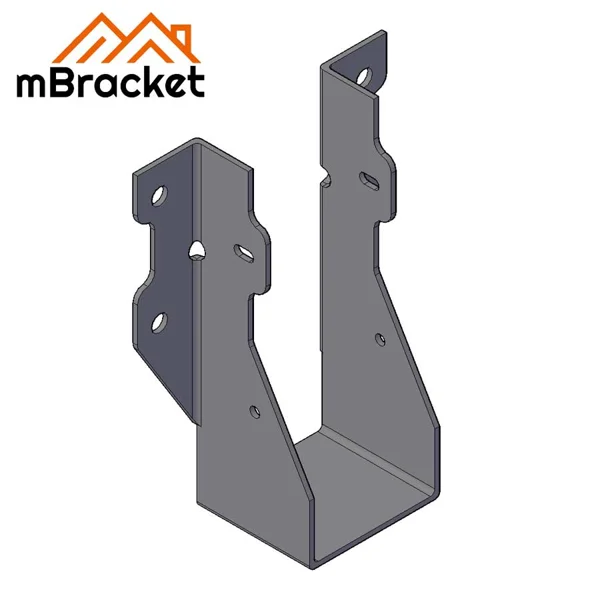

JUS-55C U-Shaped Beam Hanger Horizontal Wood Structure Connector - 255144

U-Shaped Beam Hanger Horizontal Wood Structure Connector - 255144

Wood Structure Connectors Joist Hanger U-shaped connector

SKU: JUS-55C
Variant: 2*55*144
Size: 2 × 55 × 144 mm0.08 × 2.17 × 5.67 in
Inquiry

Product Description

This U-shaped beam hanger is specifically designed for wood-frame villas, suitable for horizontal connections between joists and beams. Made from high-quality steel, it accommodates wood thickness of 55mm, with a connection height range of 145-200mm, ensuring stable and reliable structural integrity. Easy to install, it effectively enhances the overall rigidity and lateral load resistance of wood frames, making it an ideal choice for log cabin construction and reinforcement.

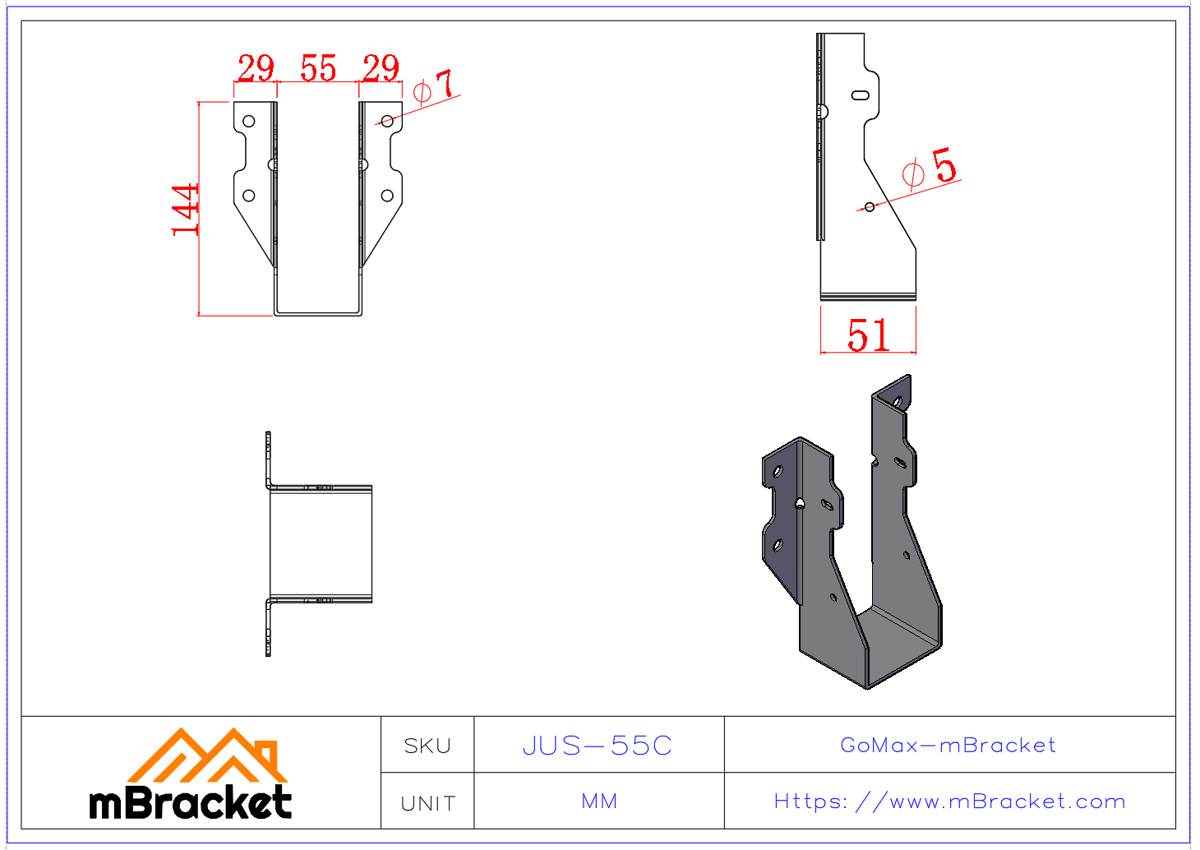

Product Dimensions

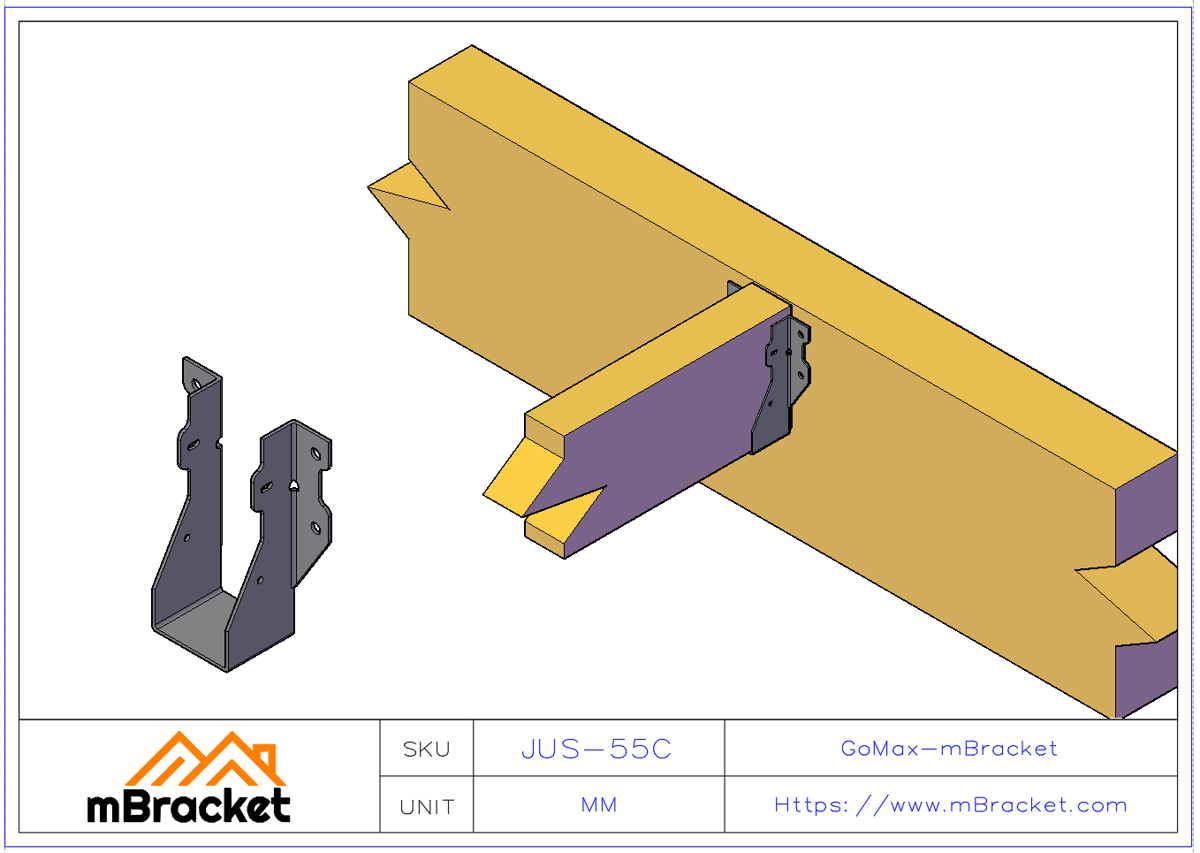

Application Example
