PS-81920 Cross-Shaped Concealed Post Base Connector Internal Cross Post Base Connector - 8*190*190*200
Cross-Shaped Concealed Post Base Connector Internal Cross Post Base Connector - 8*190*190*200
Wood Structure ConnectorsLight Steel ConnectorsBeam-Column Structural ConnectorPost BaseHidden connectors
- SKU: PS-81920
- Variant: 8*190*190*200
- Size: 8 × 190 × 190 × 200 mm0.31 × 7.48 × 7.48 × 7.87 in
- Weight: 4.888 kg
- Inquiry
Product Description
This cross-shaped concealed post base connector is specifically designed for timber and light steel structures. Its internal cross design allows for fully concealed installation, maintaining a clean and aesthetic post base appearance. Suitable for beam-to-column joint reinforcement, it provides reliable uplift and shear resistance, making it an ideal hardware accessory for structural reinforcement and timber house construction.

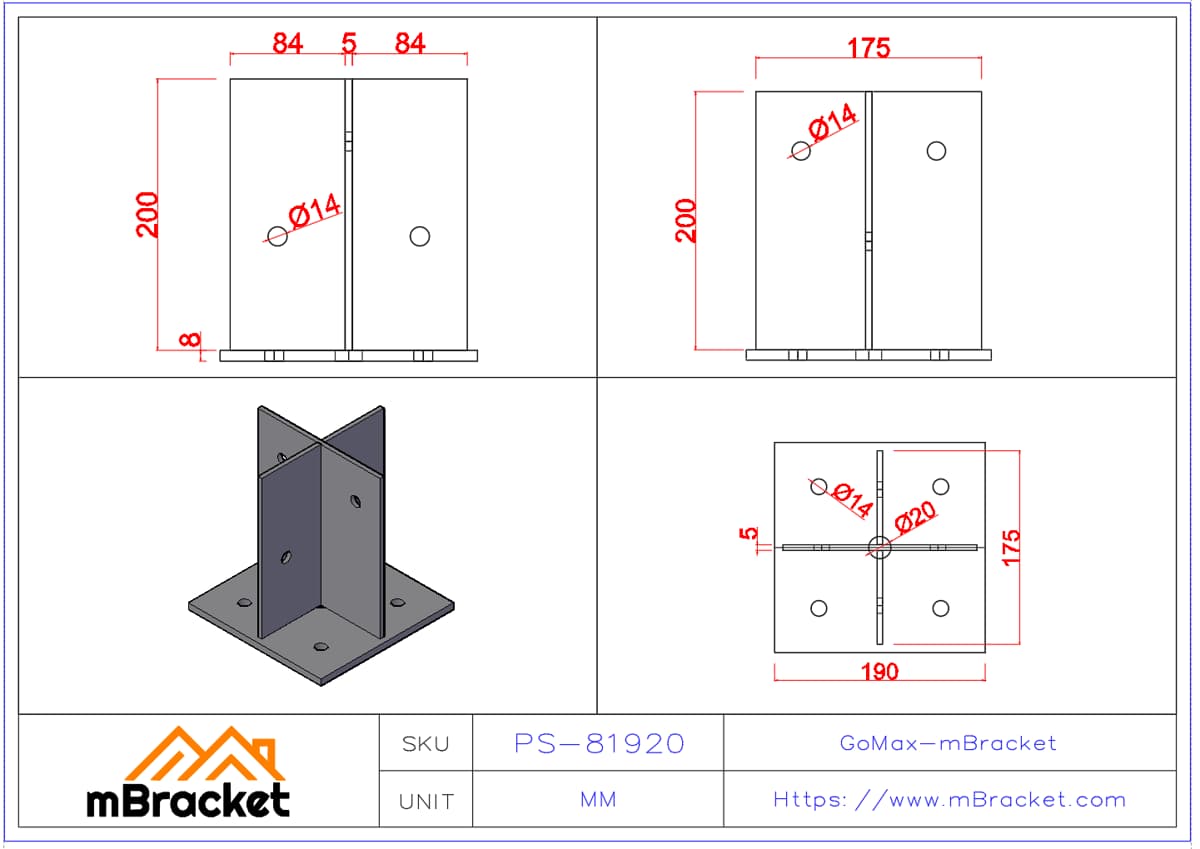

Product Dimensions

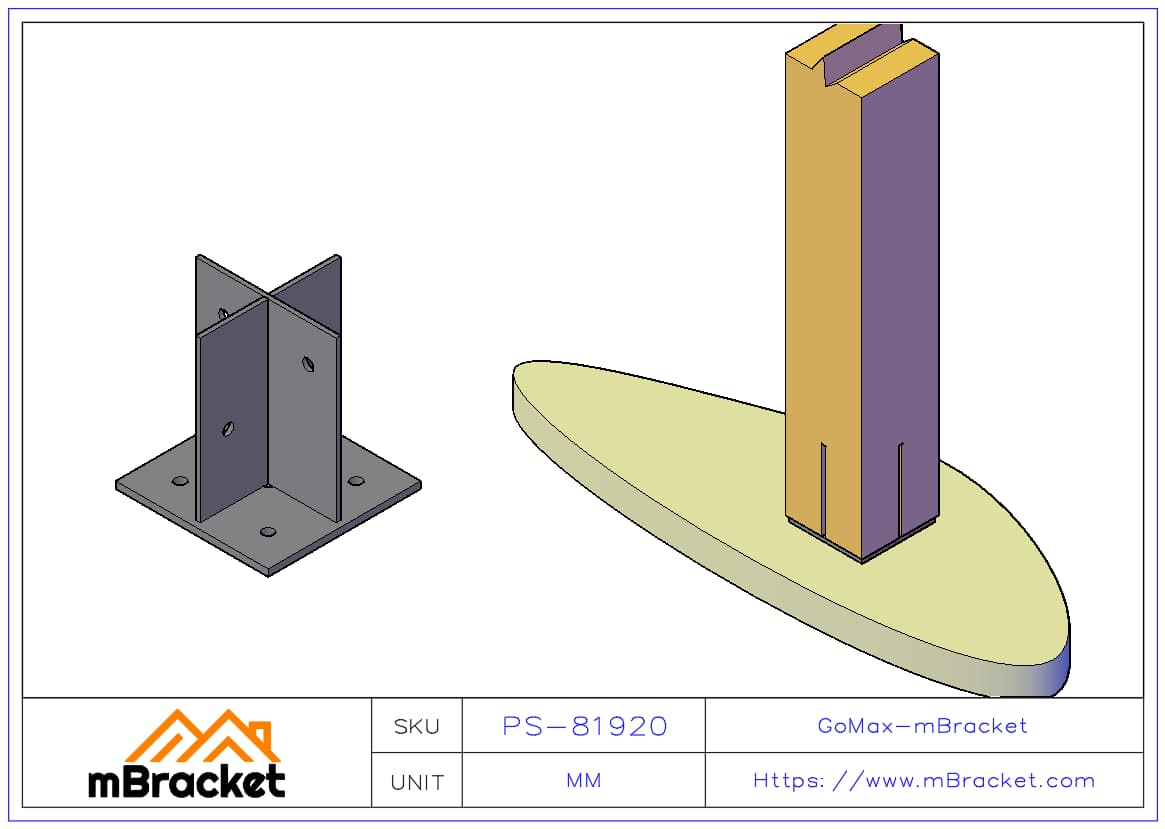

Application Example
Keywords
cross-shaped post base connectorconcealed post base connectorinternal cross connectortimber structure connectorbeam-column reinforcementpost base hardwareconcealed connectortimber house hardwarelight steel connectorstructural reinforcement connector
